DESCRIPTION

Model 6400 is constructed by using aluminum alloy material, colorless anodized, Silicone seal, Ip65.

APPLICATION

For ultra thin platform scale, small platform scale

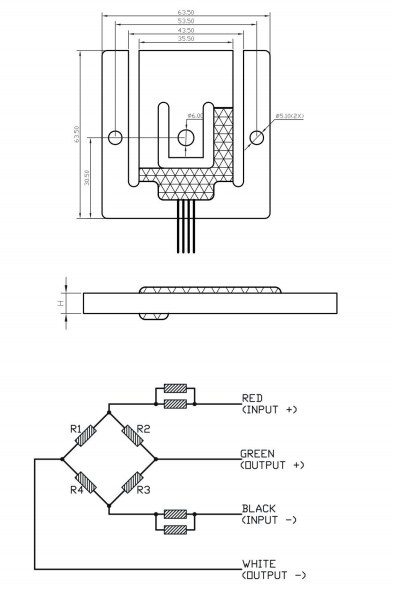

OUTINE

SPECIFICATIONS

Capaticty                                                              50/75/90/150 KG

Comprehensive Error                                       C2

Output Sensitivity                                               1.0±0.1mv/V

Nonlinearity                                                         ±0.05%F.S

Repeatability                                                       ±0.05%F.S

Hysteresis                                                           ±0.05%F.S

Creep                                                                    ±0.05%(20min)F.S

Temperature effect on Zero                             ≤±0.05%F.S/10℃

Temperature effect on Output                          ≤±0.05%F.S/10℃

Zero Output                                                          ±0.1mv/V

Input resistance                                                  1157±50Ω

Output resistance                                                1000±10Ω

Insulation resistance                                           ≥2000MΩ/100VDC

Excitation Voltage                                                 5~10(DC)V

Temperature compensated                               0~40℃

Safe overload                                                        150%F.S
