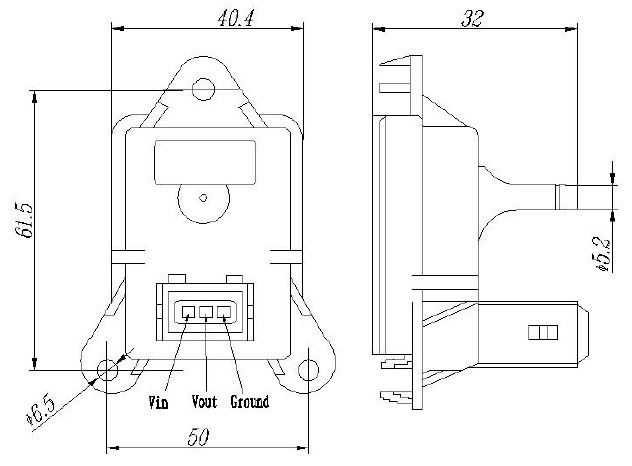

Intake Manifold Absolute Pressure Sensor (MAP Sensor 612)
OE Reference:
AFLA ROMEO: 60814507
CITROEN: 1563 J4/1920 J7/96092693
FIAT: 46531222/60811067/60814507/7714662/500309838/9609992380
VOLKSWAGEN: 377906309C
FACET: 10. 3003
HELLA : 6PP 009 400-061
STANDARD: 16802
MEAT DORLA : 82051
MARELLI : PRT0304 , 215810001604
FORD: 1638311
SAAB: 7538697
HELLA: 6pp 009 400-031
FACET: 103017
STANDARD: 16806
MEAT DORIA: 82133
HELLA: 6PP 009 400-101
FACET: 10. 3008
ALFA ROMEO: 7750716
FIAT: 60809804
FORD: 6742049, V92AB-9F479-AA
ALFA ROMEO: 775716
FIAT: 60809804
FORD: 6742049 , V92AB-9F479-AA
MARELLI: 215810001900, PRT0600, PRT06/002006AA
HELLA: 6PP 009 400-101
MEAT: 82133
STNDARID: 18806
FEATURES
● 0 bar to 1 bar ;0 bar to 2 bar ; 0 bar to 3 bar
● 1.5％FS Static Accuracy
● MEMS technology
● Programmable ASIC to meet customer specifications
● Low part count enhances reliability
● Amplified and temperature compensated
● EMI protection
● Available for turbo applications
DESCRIPTIONS
Model 612 incorporates MEMS technology and custom Application Specific Integrated Circuit (ASIC) technology in the design. It is specifically designed for tough automotive application.
Model 612 is designed to perform in the underhood harsh environment such as temperature
extremes, vibration, thermal and mechanical shock, and corrosive chemical. Typical applications
include manifold absolute pressure (MAP), barometric, ERG pressure and brake boost.
SENSOR SPECIFICATIONS
Electrical:
Supply Voltage 5.0±0.1 V dc
Supply Current 10 mA dc max
Maximum Output Current Sink 1 mA dc
Source 0.1 mA dc
Output Impedance <50 ohms
Output Voltage 0.25 to 4.85 V dc
Sensor Operating Characteristics:
Range 0 to 1 bar, 0 bar to 2 bar, 0 bar to 3 bar
Proof Pressure 200%FS
Static Accuracy (%FS)1 1.5typ.
Environmental Effects:
Compensated Temperature Range -40℃ to +135℃
Storage Temperature Range -50℃ to +165℃
